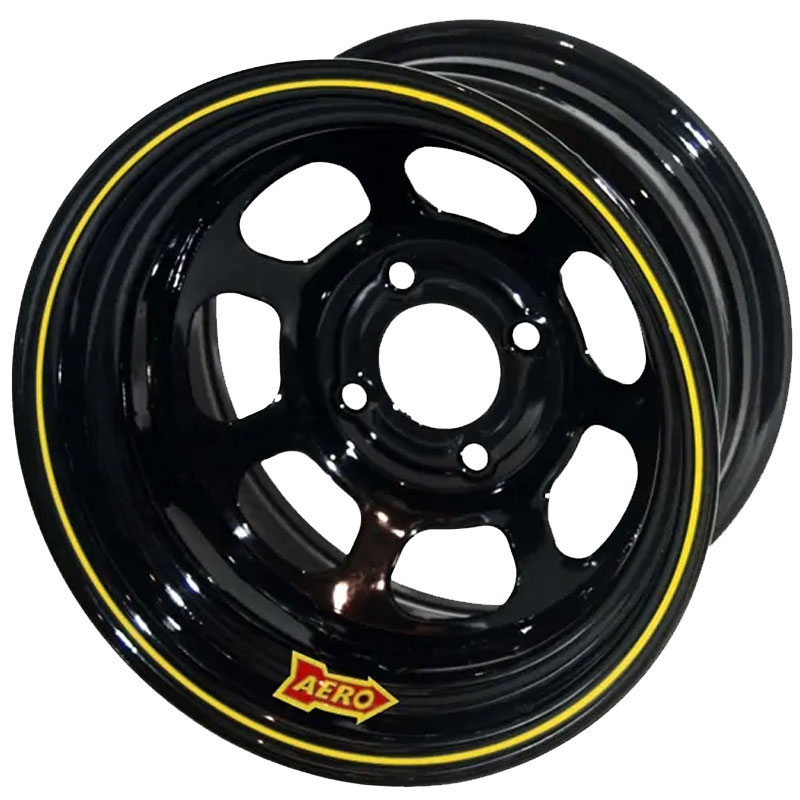

This is a CNC spun formed rim with extremely low run-outs. It has our 7-hole D-window center disc made out of HSLA material with a new torque ring design. This wheel does not have safety beads humps. AERO Race Wheels are not street legal.
| WIDTH | 13x7 | 13x8 | 13x10 |
| BOLT PATTERNS | 4x4 - 13 lbs | 4x4 - 14 lbs | 4x4 - 16 lbs |
| 4x4.25 - 13 lbs | 4x4.25 - 14 lbs | 4x4.25 - 16 lbs | |
| 4x4.5 - 13 lbs | 4x4.5 - 14 lbs | 4x4.5 - 16 lbs | |
| BACKSPACING | 1" | 1" | 1" |
| 2" | 2" | 2" | |
| 3" | 3" | 3" | |
| 3.5" | 4" | 4" | |
| 5" |
Finish Options
| Silver | Blue Chrome | Yellow Chrome |
| Black | Flo. Yellow Chrome | Purple Chrome |
| Chrome | Flo. Orange Chrome | Red Chrome |
| Flat Black | Flo. Pink Chrome | |
| White | Gold Chrome | |
| Black Chrome | Green Chrome |
Misc Dimensions
| 5/8″ valve hole |
|
1/2″ or small studs
|
|
2.750″ pilot hole dia 4X4 and 4X4.25
|
|
3.00″ pilot hole dia 4X4.5
|
